Oxygen Generator

OXYCOMBI-B Series

View Catalog

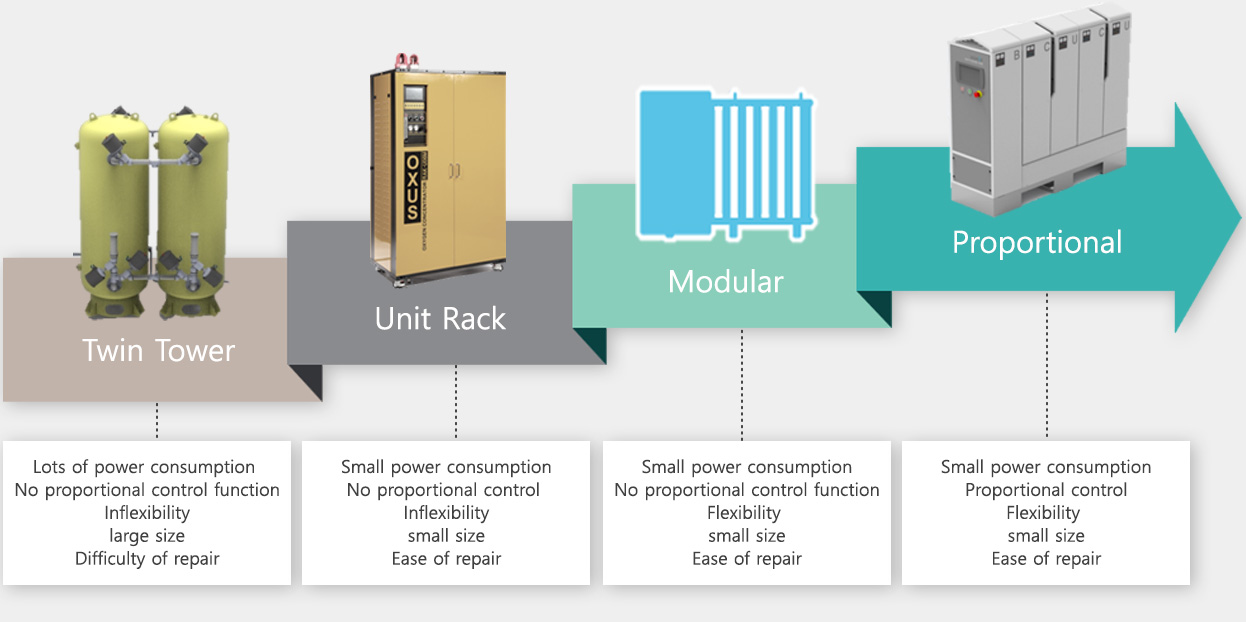

GLOBAL OXYGEN GENERATORS TREND

CHANGES IN FORM WITH HIGH ENERGY EFFICIENCY AND EASE OF REPAIR

OXYCOMBI-B SERIES is composed of an assembly of modular-type units.

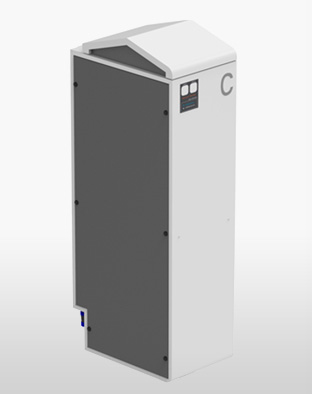

COMPUNIT
Supply FEED AIR to the OXYUNIT

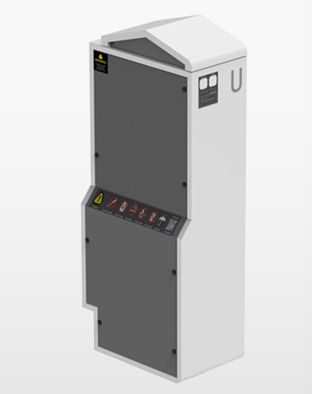

OXYUNIT
Generate oxygen through Low PSA process

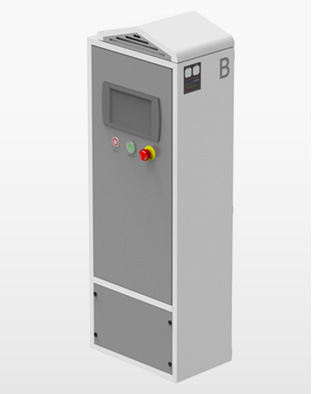

BOOSTERUNIT
Pressurize the generated oxygen up to 6.5bar

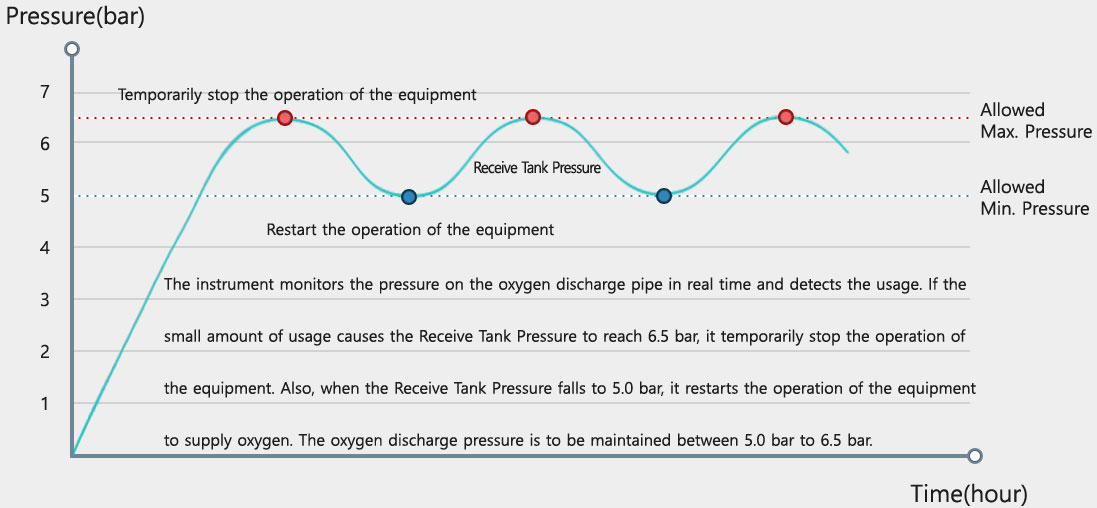

SMART OPERATION
Selecting a product that meets required capacity

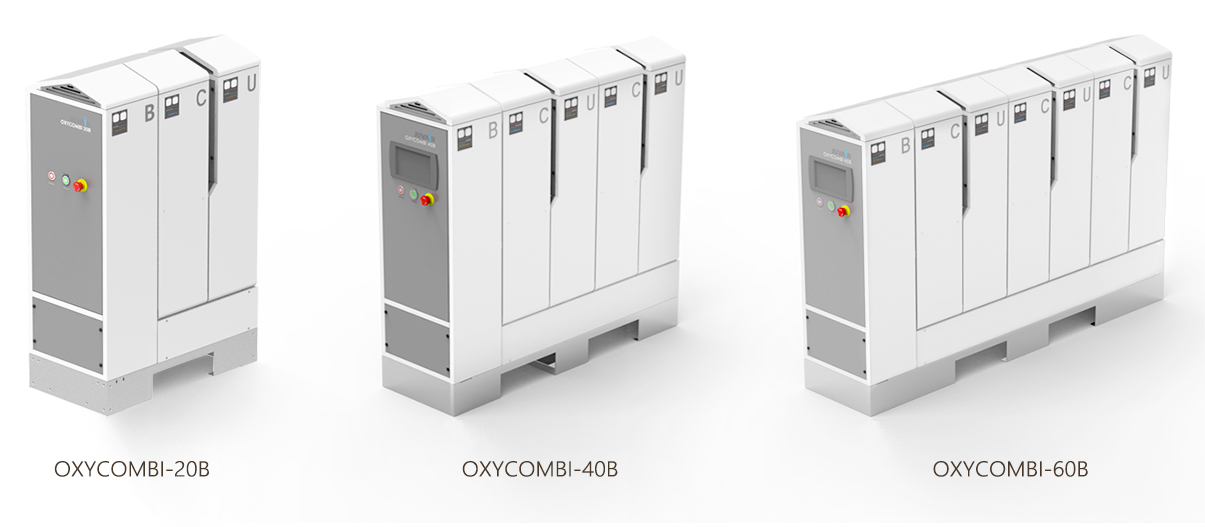

Model Number of Configuration Performance
Oxyunit Compunit Boosterunit Volume Discharged Pressure
20Lpm or
1.2Nm3/h
Max. 6.5bar
OXYCOMBI-20B 1 1 1
40Lpm or
2.4Nm3/h
Max. 6.5bar
OXYCOMBI-40B 2 2 1
60Lpm or
3.6Nm3/h
Max. 6.5bar
OXYCOMBI-60B 3 3 1
SPECIFICATIONS
Specifications Units OXYCOMBI-20B OXYCOMBI-40B OXYCOMBI-60B
Image -
Discharge Flowrate LPM 20±3 40±3 60±3
Discharge Pressure Bar Max 6.5 Max 6.5 Max 6.5
Oxygen Purity % 93±3 93±3 93±3
Operating Voltage AC 220~240V 220~240V 220~240V
Power Consumption Kw 1.4 3 4.2
Oxygen Purity Alarm Range % Under 85% Under 85% Under 85%
Operating Conditions
(Temperature, Humidity)
℃, % 5~35℃, 10~90%
Storage Conditions
(Temperature, Humidity)
℃, % -20~50℃, 10~90%
Operating Method - PSA (Pressure Swing Adsorption)
Product Noise db (A) Under 60 Under 60 Under 60
Product Weight Kg 75 160 220
Product Dimensions
(WxHxD)
mm W700XH1200XD360 W1100XH1200XD360 W1500XH1200XD360
